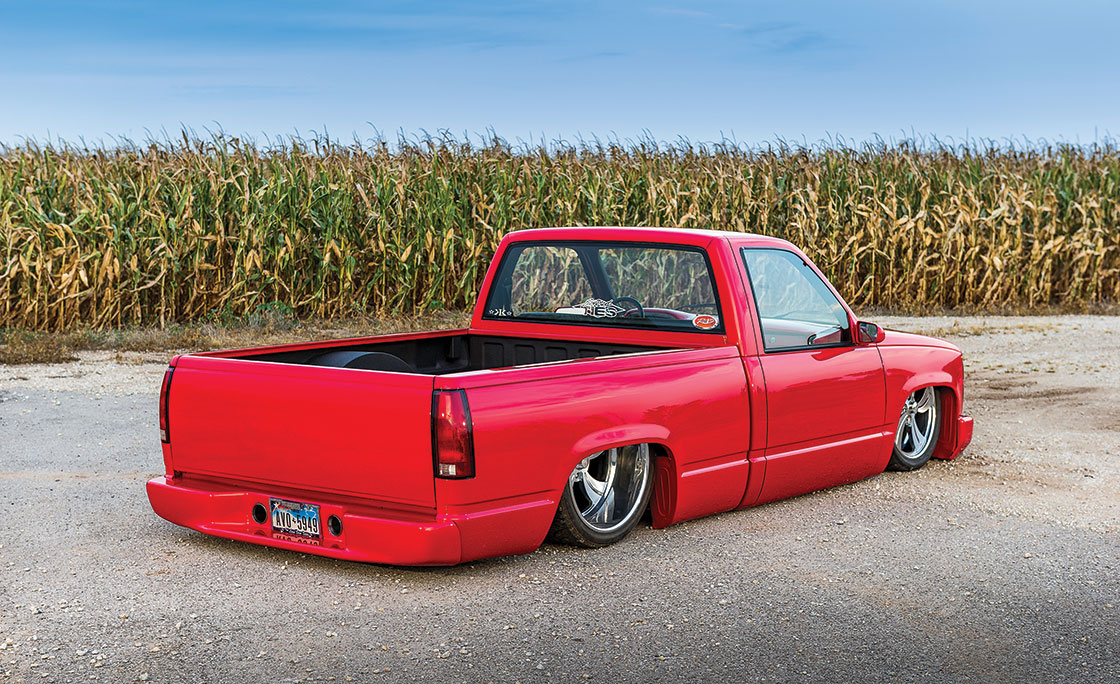

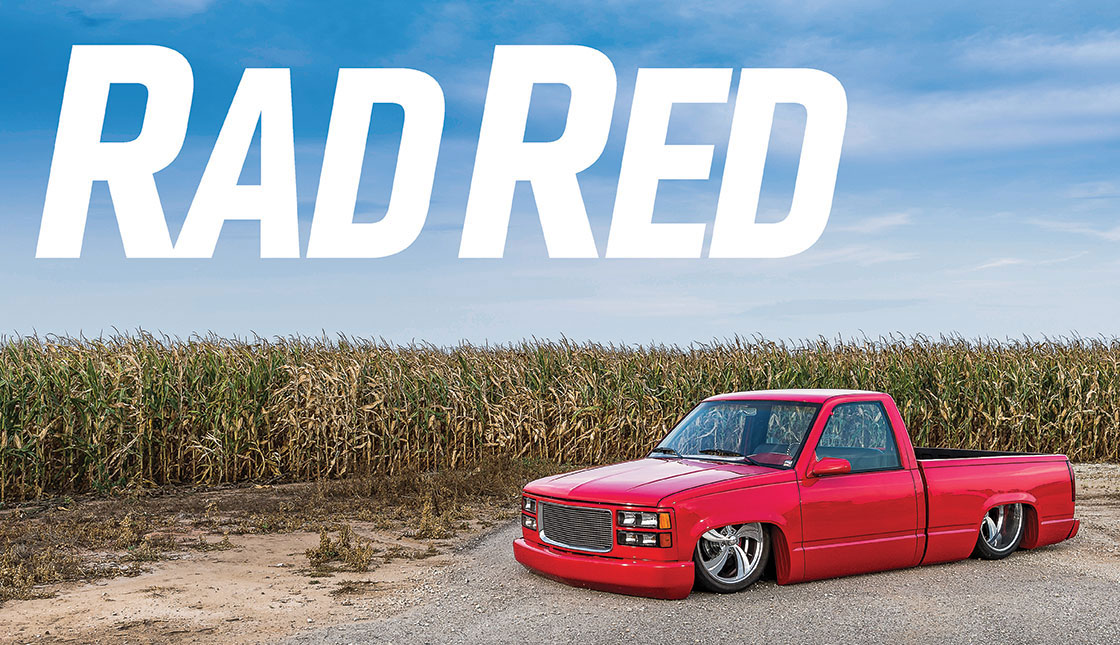

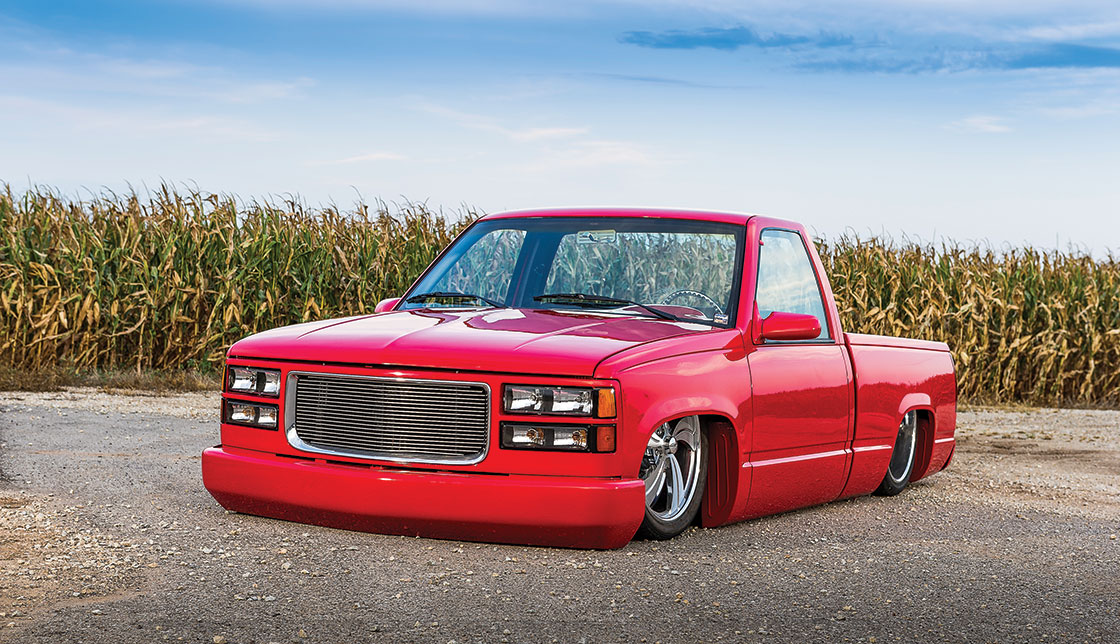

1992 Chevy C1500

Motortopia Staff , 10th January, 2022

  • 1992 Chevy C1500
  • 1992 Chevy C1500
  • 1992 Chevy C1500
  • 1992 Chevy C1500
  • 1992 Chevy C1500
Owner/Builder

Trent Briggs

Specs

    ENGINE

    • 5.3L GM Vortec engine
    • COMP Cams camshaft, 112-degree lobe separation, 0.515/0.522 lift
    • Custom dual air filter intake tubing
    • Dirty Dingo engine mounts
    • Long-tube headers
    • 3-inch Magnaflow exhaust
    • 3-row aluminum radiator
    • Dual electric radiator fans
    • NV3500 five-speed manual transmission

    CHASSIS & SUSPENSION

    • Work performed by Scott Rupp at RAD Garage
    • ¾-length fabricated frame with 2x3 and 2x4 box tubing (2.75-inch stock floor body drop)
    • Custom upper control arms
    • Modified lower control arms
    • Belltech drop spindles
    • Wheels moved forward 1.5 inches and inward 1.75 inches
    • Frame notched for tie rods
    • Air Lift 2600 airbags
    • Monroe shocks
    • Parallel 4-link with track bar
    • Rearend narrowed 7 inches per side
    • Dutchman axles
    • 3.73 gears
    • Little Shop MFG rear disc brake kit
    • 1955 Chevy gas tank

    WHEELS & TIRES

    • 22x8.5 and 22x10 Intro EZ billet aluminum wheels, machined/coated centers
    • 265/35ZR22 and 285/35ZR22 Nitto NT420S tires

    BODY & PAINT

    • Work performed by RAD Garage
    • 1994 GMC Sierra grille
    • Customized and tucked front bumper
    • Custom sheet metal bumper/fender fillers
    • Customized 1999-2006 rear bumper with exhaust tip cutouts

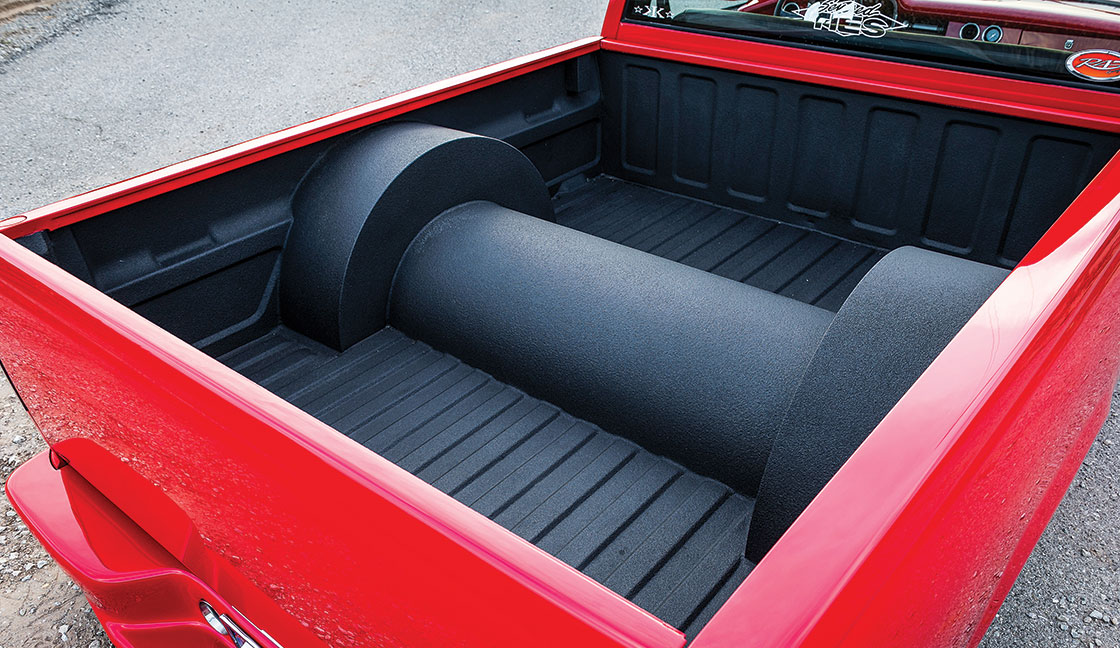

    • Molded, bead-rolled panels in bed and engine compartment
    • Shaved handles, stake pockets, antenna, third brake light and fuel filler door
    • Flush-mounted motorcycle fuel filler in bed rail
    • Stock taillights with black painted outline
    • Painted custom RAD Red with PPG products

    INTERIOR & STEREO

    • Work performed by RAD Garage and Xtreme Upholstery
    • Reshaped and molded bench seat with black vinyl and red diamond stitching
    • Custom black vinyl door panels
    • Widened and extended 1959 Ford Fairlane dashboard
    • Billet Specialties steering wheel
    • Mazda Miata AC vents
    • ACC black carpet
    • Factory gauges behind tinted Fairlane gauge lens
    • Billet Specialties window cranks
    • Pioneer head unit and speakers
    SPECIAL THANKS FROM THE OWNER: “My wife Shannon; my parents; Scott Rupp and his family Carla, Austen and Brooke; Blaine and Tracee Hawkins; Jake McKiddie; Andy Firchau; Chris Silvey; Brandon Cumbie; Gary Gilliland; and my club, Severed Ties.”
