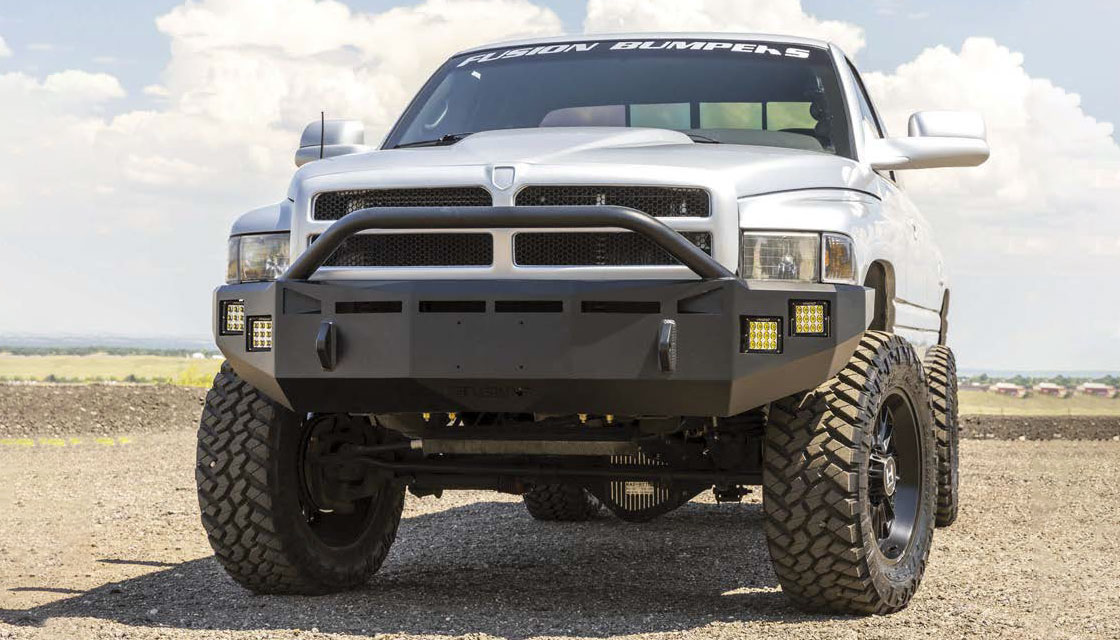

1998 Dodge Ram 2500

Motortopia Staff , 26th October, 2021

  • 1998 Dodge Ram 2500
  • 1998 Dodge Ram 2500
  • 1998 Dodge Ram 2500
  • 1998 Dodge Ram 2500
Owner/Builder

Johnny Ramirez

Specs

    ODOMETER

    • 208,000 miles

    ENGINE

    • 5.9L Cummins 12-valve built by Big Twin Diesel

    SHORT-BLOCK

    • Cryogenically treated block and crank
    • Industrial Injection Gorilla Girdle
    • Carrillo rods
    • Diamond Racing pistons
    • Stage 3 Colt cam
    • Dynomite Diesel Products (DDP) billet tappet cover
    • DDP bolt-in freeze plugs

    HEAD

    • Industrial Injection race performance head with fi re-rings
    • 47.5mm intake valves
    • 43mm exhaust valves
    • fully CNC-ported with ZZ Custom Fabrication intake manifold
    • Hamilton Cams extreme duty pushrods
    • ARP Custom Age 625+ head studs

    FUEL

    • 215hp P7100 with DDP .024 delivery valves
    • AFC spring and fuel plate
    • Stage 3 injectors
    • 23 degrees of timing
    • dual FASS 200-gph fuel systems with FASS tank sump

    AIR

    • Big Twin Diesel compound turbo system with Garrett GT4718R low-pressure and GTX3582R high-pressure
    • Banks Twin-Ram intake elbow with TurboSmart blow-off valve
    • High Tech Turbo intercooler

    EXHAUST

    • Steed Speed T3 manifold
    • 5-inch Diamond Eye Performance stainless steel system with 6-inch tip
    • Big Twin Diesel custom downpipe Injectables
    • Snow Performance Stage 2 water-methanol injection system
    • two-stage nitrous system

    ELECTRONICS

    • ATS Co-Pilot

    TRANSMISSION

    • ATS Diesel Stage 6 47RE with billet input
    • intermediate
    • and output shafts
    • 48RE six-pinion steel Overdrive planetary
    • Raybestos race clutches and frictions
    • high-pressure racing edition valve body
    • billet accumulator piston
    • billet second gear servo
    • billet fl ex plate
    • deep pan
    • Five-Star torque converter

    HORSEPOWER

    • 800 hp (dyno)

    TORQUE

    • 1,580 lb-ft (dyno)

    TIRES

    • 35x12.50R20 Nitto Trail Grappler M/T

    WHEELS

    • 20x10 Hostile Fury Model H114 in Asphalt fi nish

    SUSPENSION/STEERING

    • Carli Suspension Performance 2.0 Kit with multi-rate coil springs
    • Fox 2.0 Reservoir shocks (front and rear)
    • modifi ed Keldermann air spring system
    • BD Diesel steering box stabilizer

    AXLES

    • Factory front Dana 60 with Yukon Gear & Axle 4.10 ring and pinion
    • factory rear Dana 70 with Detroit locker and Yukon 4.10 ring and pinion.
