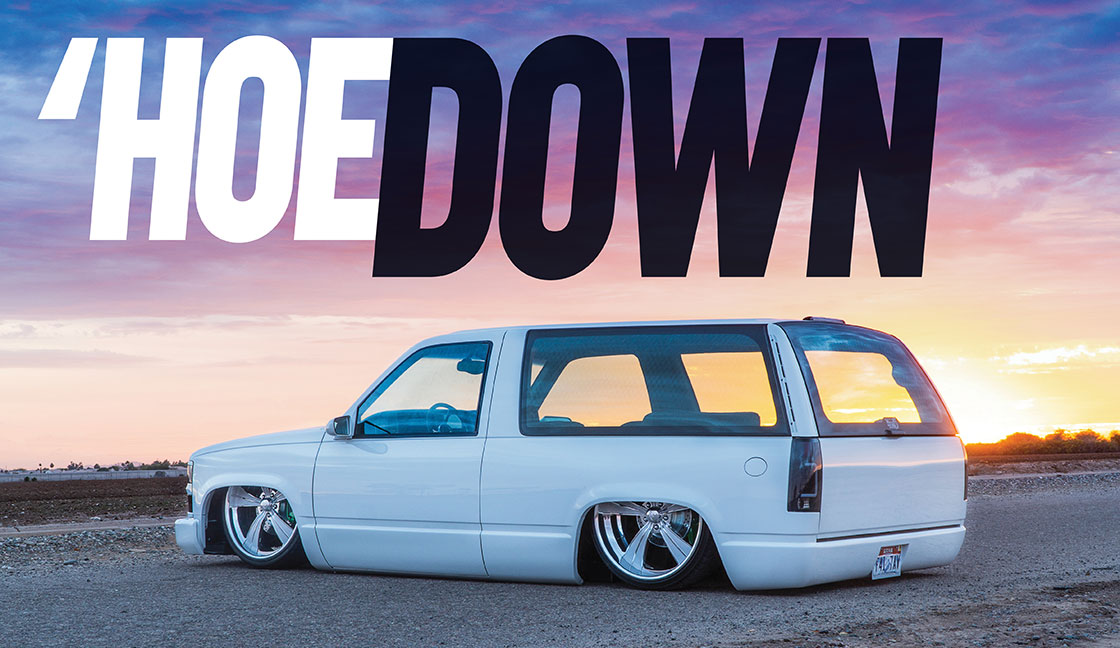

1999 Chevy Tahoe


  • Worked performed by Tre 5 Customs
  • New 2×4 frame from firewall back to achieve body drop
  • New custom body mounts and crossmembers
  • Stone Fab tubular control arms
  • Custom 6-link with triangulated lower bars, leveraged rear-mounted bars
  • Slam Specialties SS7 airbags
  • AccuAir e-Level air management with ENDO VT valve/tank combo
  • Dual Viair 444C compressors
  • Custom fuel cell
  • AZ Pro Performance brakes with 14-inch rotors front and rear
  • ABS removed and replaced with residual valves and rear proportioning valve
  • Painted and powdercoated chassis
  • Narrowed rear axle housing
  • 3.73:1 gearing with limited slip


  • Work performed by Steve at Elevated Design
  • ECU and fuse block relocated to interior (by Tre 5 Customs)
  • Factory seats reupholstered with ultra leather
  • Rear seat modified to fit between wheel tubs
  • Billet Specialties steering wheel
  • Smoothed and painted dashboard and interior panels (by Ikandy Paintworks)
  • Pioneer double-DIN head unit in custom bezel
  • JL Audio 6-inch component set in factory door locations
  • Custom sub enclosures with 10-inch JL Audio subwoofers
  • JL Audio amplifiers
  • LED accent lighting throughout interior
  • Air management covered with mesh inserts


  • Work performed by Tre 5 Customs
  • Rebuilt factory 5.7L Vortec engine, painted block
  • Tucked factory wiring
  • BBK ceramic coated headers
  • Custom air intake tube with Spectre filter
  • Custom TIG-welded stainless steel exhaust
  • Aluminum radiator with dual electric fans
  • Rebuilt original 4L60E transmission from Transmission Service Center, painted
  • TransGo shift kit
  • Custom two-piece driveshaft with carrier bearing


  • 24×9 and 24×10 Intro Vista II billet aluminum wheels
  • Nexen 275/30ZR24 tires


  • Work performed by Ikandy Paintworks
  • Color-matched aftermarket grille with mesh inserts
  • Shaved handles all around
  • Shaved roof rack
  • Shaved gas door
  • Shaved cowl
  • Welded Grant Fabrication roll pan
  • Trimmed front bumper valance
  • LED headlights and taillights
  • Custom front and rear wheel tubs (by Tre 5 Customs)
  • Painted BMW Alpine White
