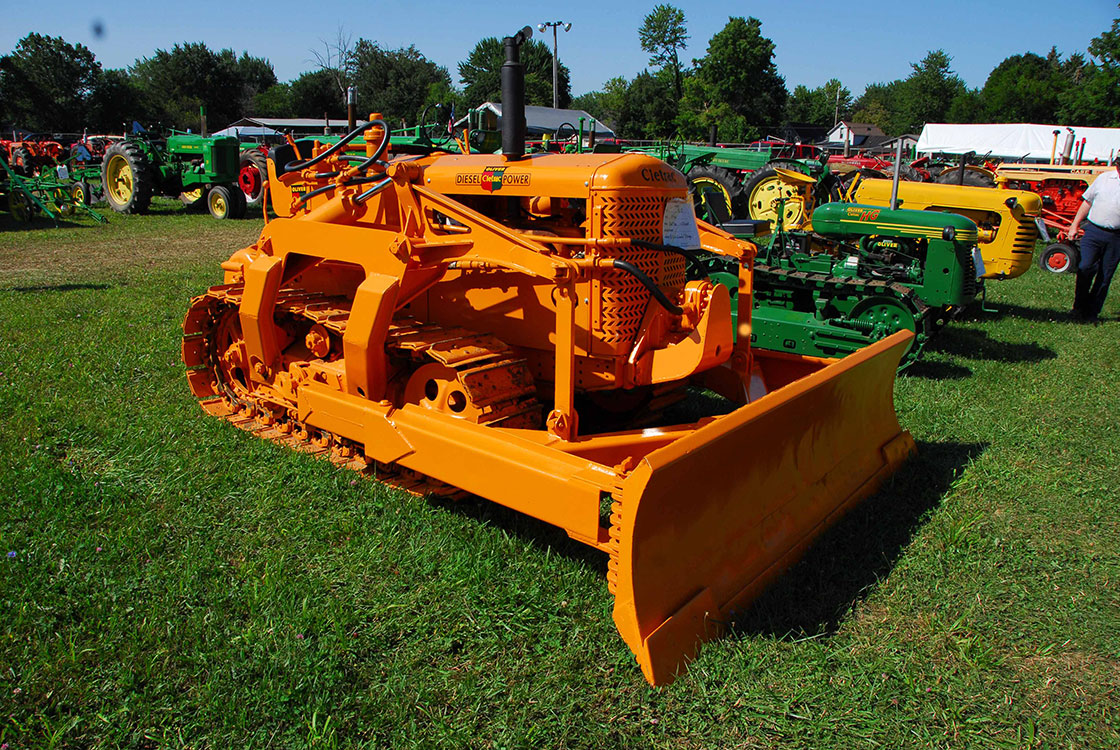

1946 OLIVER CLETRAC BD
Specs

ENGINE

  • 6-cylinder IDI diesel
  • Hercules DJXC

DISPLACEMENT

  • 298 ci

BORE & STROKE

  • 3.75 x 4.5 inches

FLYWHEEL HORSEPOWER

  • 83 hp @ 2,600 rpm

FLYWHEEL TORQUE

  • 208 lb-ft @ 1,500 rpm

*RATED BELT POWER

  • 48.09 hp @ 1,400 rpm

*RATED DRAWBAR POWER

  • 38.05 hp @ 1,400 rpm

COMPRESSION RATIO

  • 14.5:1

TRANSMISSION

  • 6-speed (4 forward, two reverse)


TREAD GAUGE

  • 44 in. (52-in. optional Hillside model)

TRACK WIDTH

  • 14 in. (16-in. optional Hillside model)

GROUND PRESSURE

  • 5 psi

*FUEL CONSUMPTION

  • 3.46 gph @ full power

*DRAWBAR PULL

  • 7,530 lbs. @ 1,400

WEIGHT

  • 9,400 lbs. (bare unit)

FUEL CAPACITY

  • 23 gal.

*TOP SPEED

  • 5.4 mph

*As rated by Nebraska Tractor Test 325
