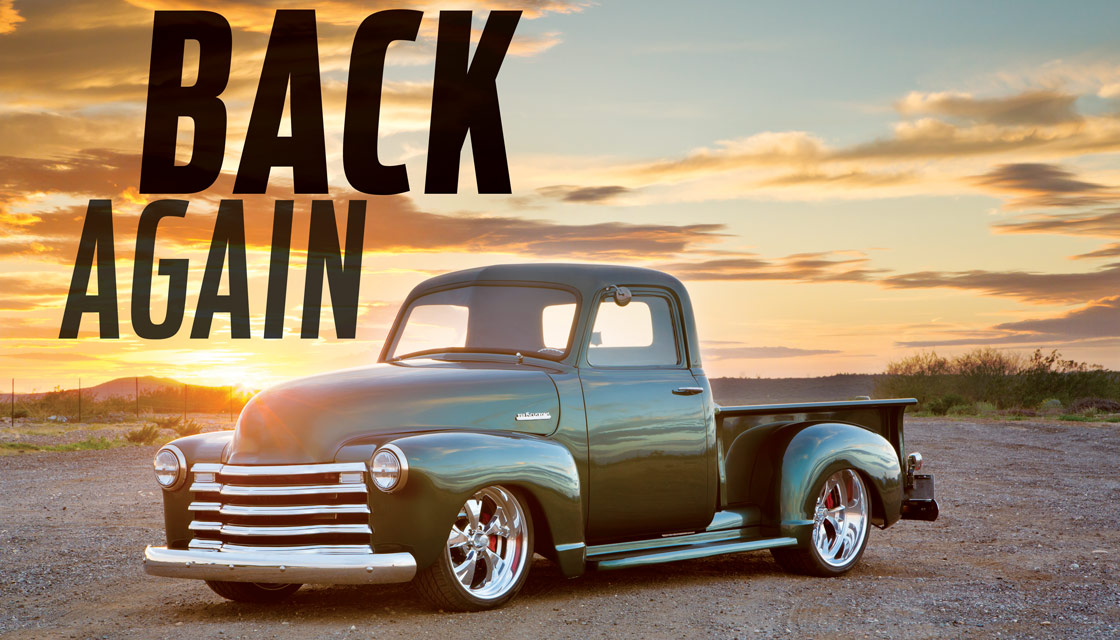

1951 Chevrolet 3100

Motortopia Motortopia , 16th February, 2023

  • 1951 Chevrolet 3100
  • 1951 Chevrolet 3100
  • 1951 Chevrolet 3100
  • 1951 Chevrolet 3100
  • 1951 Chevrolet 3100

Carmen Vasquez



    • Shop: Tre 5 Customs
    • Turnkey Engine Supply, Oceanside, CA
    • Chevrolet 372-ci LS3 V-8 with 432 hp and 430 ft-lbs torque
    • Forged powdered metal rods
    • Mahle hypereutectic aluminum pistons
    • Nodular iron crankshaft
    • Cast aluminum cylinder heads
    • 2.160-inch hollow stem intake valves
    • 1.590-inch exhaust valves
    • 5/16x7.400 pushrods
    • 1.7:1 rockers
    • COMP Cams hot cam and lifters
    • Edelbrock high-performance aluminum water pump
    • Summit Racing radiator
    • Energy Suspension motor mounts
    • LS3 composite intake manifold
    • Polished stainless-steel headers
    • True dual 3-inch stainless steel exhaust TIG welded by Tre 5 Customs
    • Dual 3-inch Black Widow Venom mufflers
    • 140-amp 1-wire alternator
    • Dual electric cooling fans
    • K&N air filter with custom intake
    • Drive-by-wire throttle body
    • All American Billet LS front drive system with All American Billet polished 6061-T6 pulleys
    • All American Billet coolant and power steering reservoirs
    • Turnkey Engine Supply wiring
    • Custom aluminum hoses
    • Color-matched valve covers with custom-engraved plaques by Hanro Studios
    • Turnkey Engine Supply 4L65-E transmission
    • 2,800 stall speed
    • Lokar shifter
    • Five-pinion gear sets
    • Heat-treated stator shaft splines
    • Induction hardened turbine shaft
    • Seven-plate clutch
    • Shot-peened output shaft
    • Revised valve body calibration
    • Custom two-piece steel driveshaft with carrier bearing
    • 20-gallon gas tank built by Tre 5 Customs
    • Strange Engineering 9-inch rearend with 31-spline axles
    • Eaton Tru Trac
    • 3:73 gear ratiok


    • Shop: Tre 5 Customs
    • Roadster Shop Revo chassis
    • Parallel 4-link with pan hard bar
    • Ridetech RQ coil-overs
    • Wilwood spindles
    • Roadster Shop control arms
    • Baer six-piston 14-inch brakes front
    • Baer six-piston 14-inch brakes rear
    • Under-cab-mounted 7-inch dual diaphragm brake booster


    • 20x8.5 and 22x10 polished Intro Santa Fe
    • Pirelli 255/35R20 and 305/30R22 tires


    • Performed by Jeremy and Hector at Tre 5 Customs in Phoenix and Frank, Jackie, Jim and Chris at IkandyPaintworks, Peoria, AZ
    • Shaved center hood seam and trim
    • Shaved cowl
    • Shaved gas door
    • Shaved B-pillar vent
    • Shaved stake pockets
    • Altman latches on doors and tailgate
    • Custom bead-rolled firewall and matching tailgate skin
    • LMC Truck replacement grille
    • LMC Truck chrome front and rear bumpers
    • LMC Truck bed
    • LMC Truck LED taillights and headlights
    • Custom-built gas door in the bed floor
    • Precision Replacement Products windows installed by Select Glass
    • Tre 5 Customs billet custom-cut badges by All-American Billet
    • Fashion Paint Nature Green laid over black basecoat
    • Automotive HS50 clearcoat


    • Performed by Steve Yiu at Elevated Design, Phoenix
    • TMI Products Bentley carpet
    • TMI Products Sport X seats
    • Wrapped headliner
    • Double-DIN radio and Vintage Air AC control custom fitted to the stock dashboard
    • Painted trim piece around radio and AC controls
    • Wrapped dashboard
    • Dakota Digital VHX direct-fit gauges
    • All American Billet interior handles
    • Vintage Air Gen IV AC
    • Custom console
    • Custom door panels and kick panels
    • Single-piece side window conversion
    • Power side windows
    • Pioneer head unit
    • Rockford Fosgate wiring
    • One five-channel Rockford Fosgate Punch amplifier
    • One 10-inch Rockford Fosgate Punch series shallow-mount subwoofer
    • Kinetik HC1800REV battery
    SPECIAL THANKS FROM THE OWNER: “Special thanks toEl Primo Oilfield Services for hooking me up with Tre 5 Customs and Ikandy Paint Works. I also want to thank God and all my friends and family for helping me make the special memory and build possible.”
