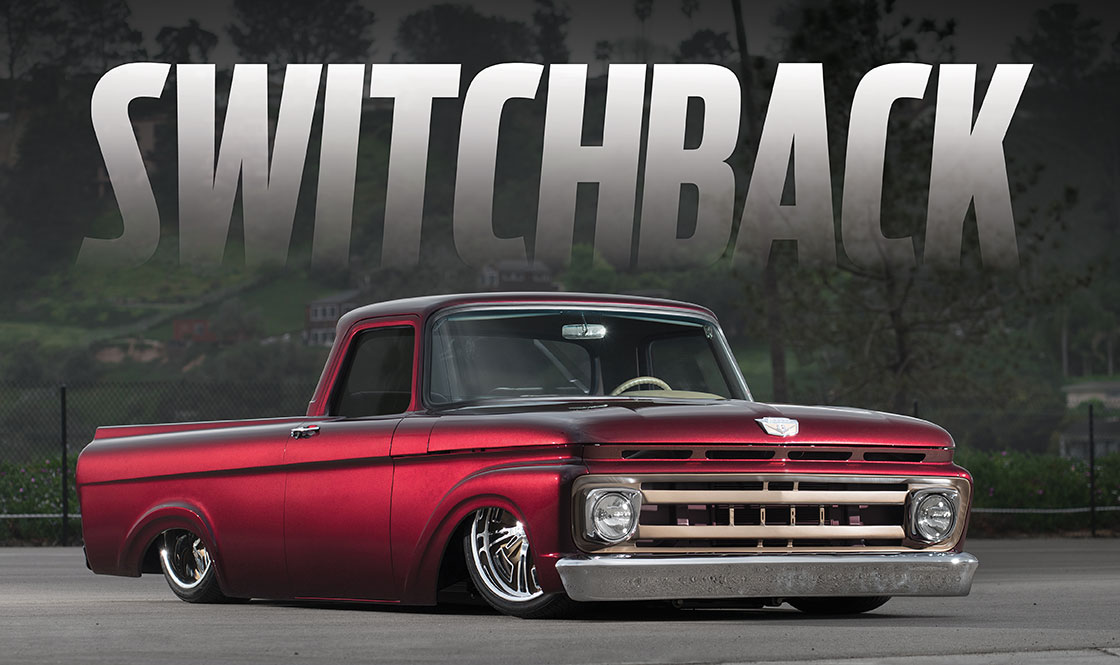

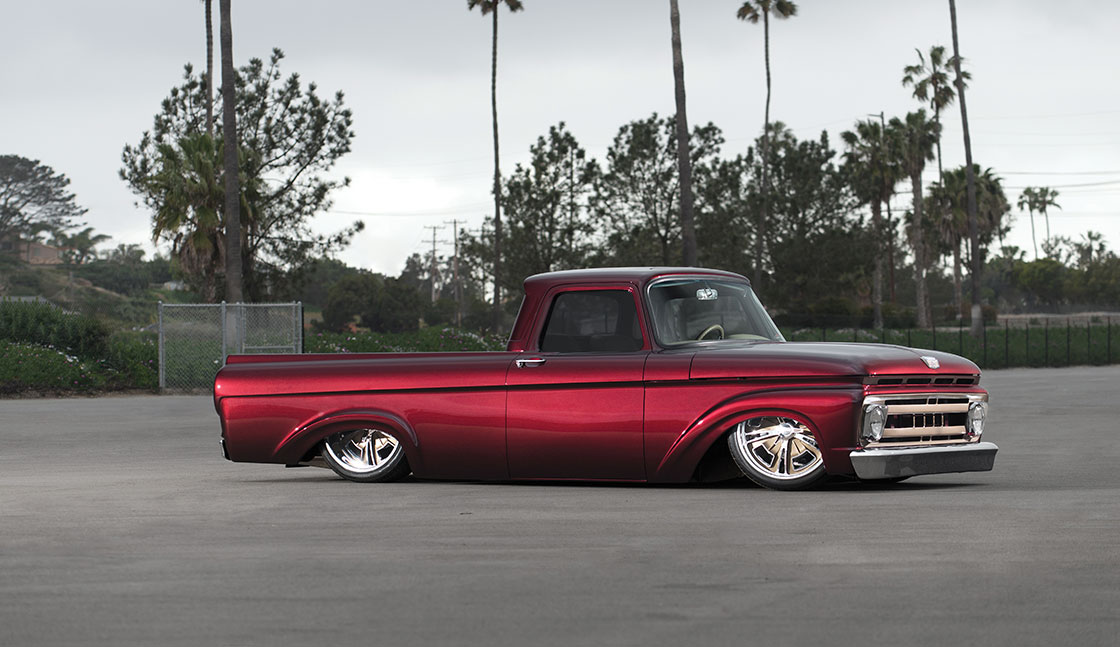

1961 Ford F-100 Phoenix, AZ

Motortopia Staff , 26th May, 2022

  • 1961 Ford F-100 Phoenix, AZ
  • 1961 Ford F-100 Phoenix, AZ
  • 1961 Ford F-100 Phoenix, AZ
  • 1961 Ford F-100 Phoenix, AZ
  • 1961 Ford F-100 Phoenix, AZ
Owner/Builder

Todd Williams

Specs

    ENGINE

    • Shop: Jason Graham Hot Rods
    • Ford Racing 5.0L Coyote engine
    • 435 hp
    • Gearstar 4R70W auto transmission
    • Ford Racing headers modified by Jason Graham Hot Rods
    • Custom exhaust and air intake by Jason Graham Hot Rods
    • Magnaflow muffler
    • Jet Hot coating
    • March Performance serpentine belt
    • Narrowed Ford 9-inch rearend
    • Rick’s Tanks aluminum fuel cel

    CHASSIS & SUSPENSION

    • Shop: Porterbuilt Fabrication, Nate Porter
    • Z’d frame front and rear, boxed with all holes filled
    • Porterbuilt Dropmember Level 3 front system
    • CPP 2.5-inch drop spindles
    • Porterbuilt Fabrication tubular control arms
    • Porterbuilt Dropmember Level 3 rear system with adjustable 4-link
    • Air Lift Dominator 2,600 ’bags
    • KYB Excel-G shocks
    • AccuAir e-Level system
    • CPP big brake kit with vented rotors
    • Wilwood master cylinders

    WHEELS & TIRES

    • 22x9 and 22x10 Schott Modsport wheels in bronze ceramic paint/polished finish with 6-inch and 4-inch backspace
    • 255/35R22 and 285/35R22 Yokohama Parada tires

    BODY & PAINT

    • Shop: Jason Graham Hot Rods
    • PPG Mahogany Pearl
    • 2-inch chop top
    • Shaved drip rails, gas filler, keyholes
    • Custom-fabricated tailgate
    • Stock grille, turn signals removed
    • Stock front bumper, license plate recess filled and smoothed
    • Rear bumper smoothed
    • Stock door handles

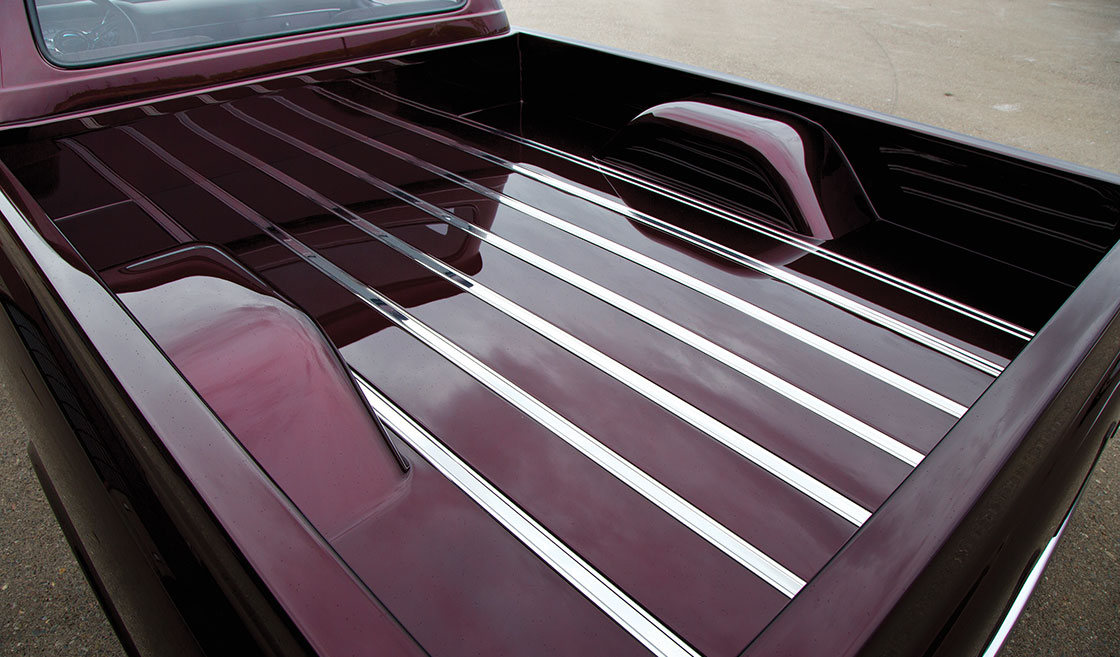

    • Steel bed floor with stainless strips
    • Fuel filler relocated to bed
    • Power one-piece windows

    INTERIOR & STEREO

    • Shop: John Miller
    • Late-model seats upholstered in Relicate custom leather
    • Budnik steering wheel
    • Leather headliner
    • Con2R gauges
    • Stock handles
    • Custom console by John Miller
    • Hurricane AC by Old Air Products
    • Rockford Fosgate head unit
    • Kenwood Excelon speakers, subs and amps
    • Boom Mat sound deadener
    • Optima battery
    SPECIAL THANKS FROM THE OWNER: “Thank you to Jason and Tasha Graham of Jason Graham Hot Rods, Nate Porter of Porterbuilt Fabrication, my parents for getting me pointed in the right direction, and especially my wife, Cheryl, for never saying a word about all the money spent on this dream ride.”
