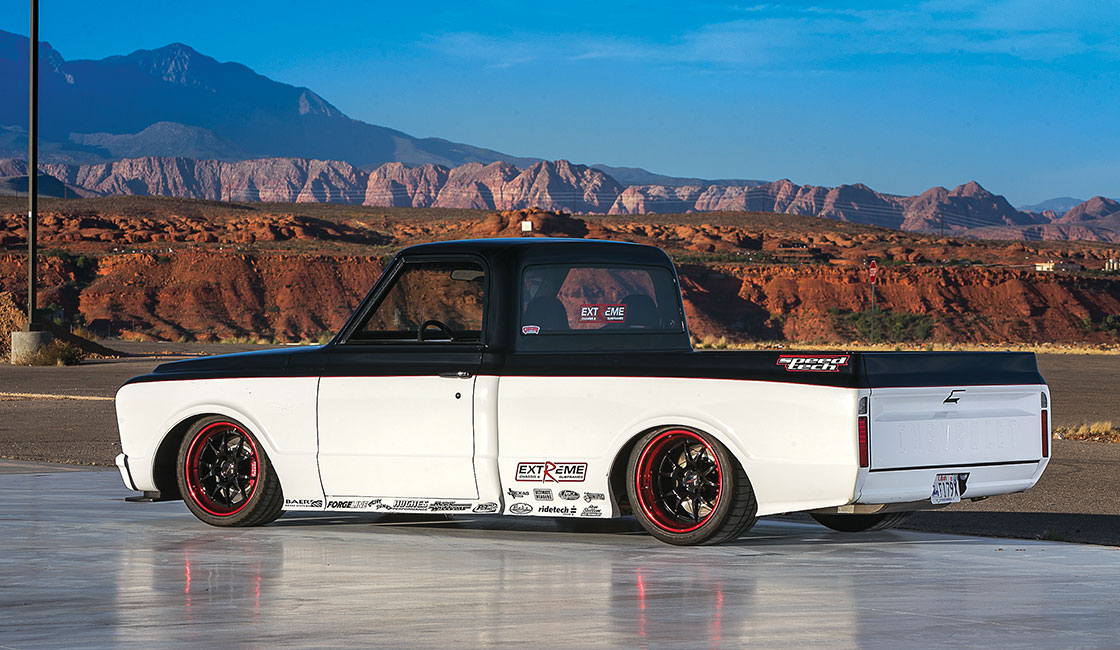

1968 Chevy C-10 Short-Bed St. George, UT
Owner/Builder
Specs
ENGINE
- Dyno’d 560-hp Texas Speed &Performance 6.3L LS3
- Sheet metal custom coil covers
- Speedtech-Performance-fabricated road race oil pan
- Remote oil filter and cooler system
- Drive Junky pulley system
- Custom-built and polished air intake tube and K&N cone filter
- Speedtech Performance stainless ExtReme full length headers
- Stainless 3-inch dual into single 4-inch exhaust/2-in-1 out Spintech muffler
- PRC aluminum radiator with Spal dual electric fans
- Rick’s Tanks custom ExtReme chassis stainless fuel tank
- Vapor Works ZL1 Fuel pump assembly
- Hughes 4L65E transmission and torque converter modified for road racing
- Mark Williams Accubond 6061 aluminum 4-inch driveshaft
- Dutchman-built Ford 9-inch rear axle, truetrac posi center, 3.73 gears
CHASSIS & SUSPENSION
- Speedtech Performance complete ExtReme 1968-72 C-10 chassis and suspension
- Speedtech ExtReme high-clearance, geometry-enhanced, tubular control arms
- Sweet Mfg. quick-ratio, autocrossed- valved, rack-and-pinion steering
- Front and rear Ridetech single adjustable coil-over shocks with Speedtech/Ron Sutton Secret Sauce street/race valving
- Speedtech ExtReme front and rear custom rate splined sway bars
- Speedtech rear Torque Arm and billet pan hard bar
- Speedtech Articulink bind-eliminating rotating lower control arms
WHEELS & TIRES

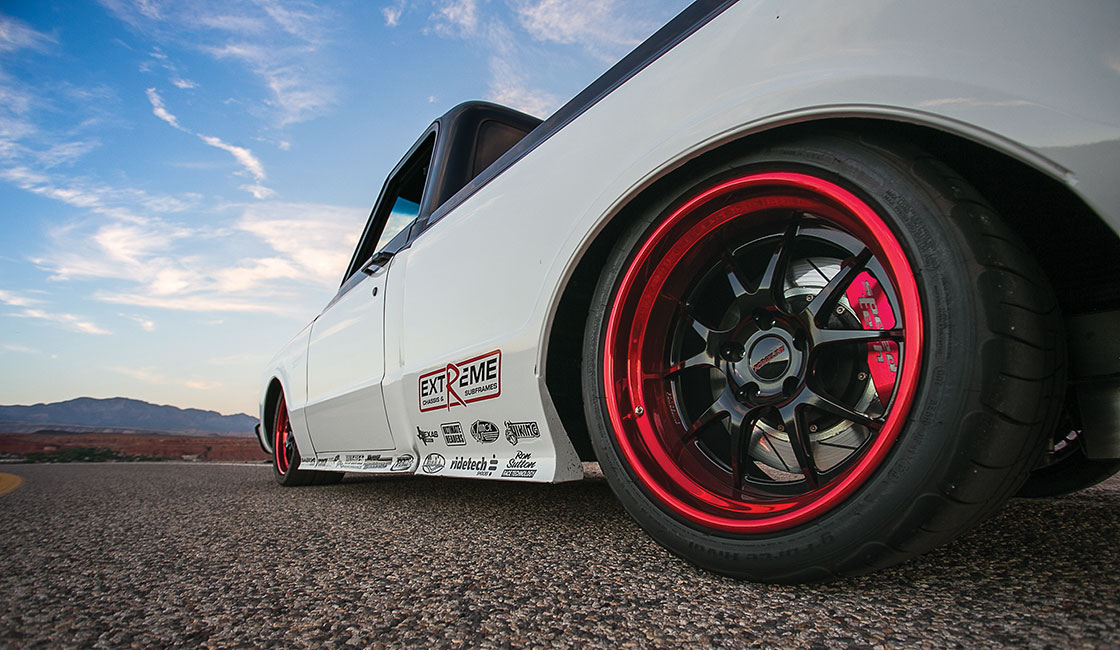

- 19×10 and 20×12 Forgeline GT3C
- 295/30R19 and 345/30R20 Michelin Pilot Super Sports
WHEELS & TIRES, RACE
- 18×10.5 and 18×12 Forgeline GA3R
- 315/35R18 and 335/30R15 BF Goodrich Rival S
BODY & PAINT
- Shaved drip rails
- Flush-mount front and rear glass
- Quarter window delete
- Recessed hood and billet hinges

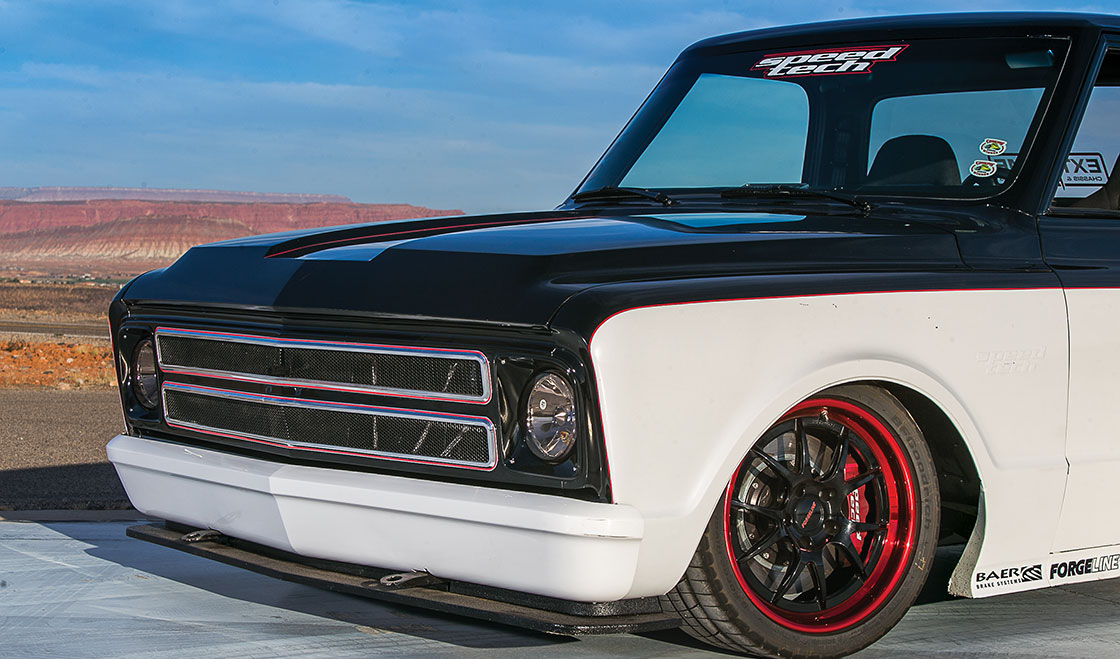

- Smoothed Marquez fiberglass front bumper
- Custom front splitter
- Custom octagon mesh grille inserts
- Diamond-cut headlights with integrated turn signals
- Speedtech Logo stamped fenders
- Hand-fabricated sheet metal ground effects
- Shaved cab-mounted fuel filler
- Smoothed firewall and custom wheel tubs with hidden boxes for ECM and air filter
- Motorcycle-type pop-up fuel filler in bed rail
- Rear wheel tubs widened 4 inches
- Raised bed floor and wheel tubs covered in bed liner
- Custom rear roll pan
- Black paint
- White 3M 1080 vehicle vinyl wrap
- Slightly frenched LED taillights
INTERIOR & STEREO
- Cipher bucket seats
- Ridetech five-point race harnesses
- Custom Speedtech Signature gauges by Speedhut
- Billet aluminum dash inserts
- ididit steering column
- Vintage Air AC and heating system
- Grant steering wheel
- B&M shifter
- Alpine stereo with 1,000-watt amps and 10-inch Alpine woofer hidden in console
- Custom console with 2015 GMC armrest, cup holders, and 110v USB and accessory outlets
- Custom leather-wrapped dash pad, door panels and headliner
