2004 CHEVROLET SUBURBAN 2500
Owner/Builder
Specs

ODOMETER:

  • 115,000 miles

ENGINE:

  • 6.6L LBZ Duramax with girdle
  • ARP main studs
  • Carrillo rods
  • Mahle Motorsport pistons, alternate firing order camshaft, beehive valve springs
  • ARP head studs

FUEL:

  • Exergy Performance 150% over injectors
  • Exergy Performance Street Series 14mm CP3
  • FASS Titanium Series 150gph fuel system

AIR:

  • Compound turbo arrangement with BorgWarner S488 SX-E atmosphere charger
  • DuramaxTuner Stealth 64 VVT in valley
  • Wehrli Custom Fabrication intercooler piping, pedestal, downpipe, and coolant reservoir
  • ProFab Performance exhaust manifolds and up-pipes
  • BD Diesel intercooler

TUNING:

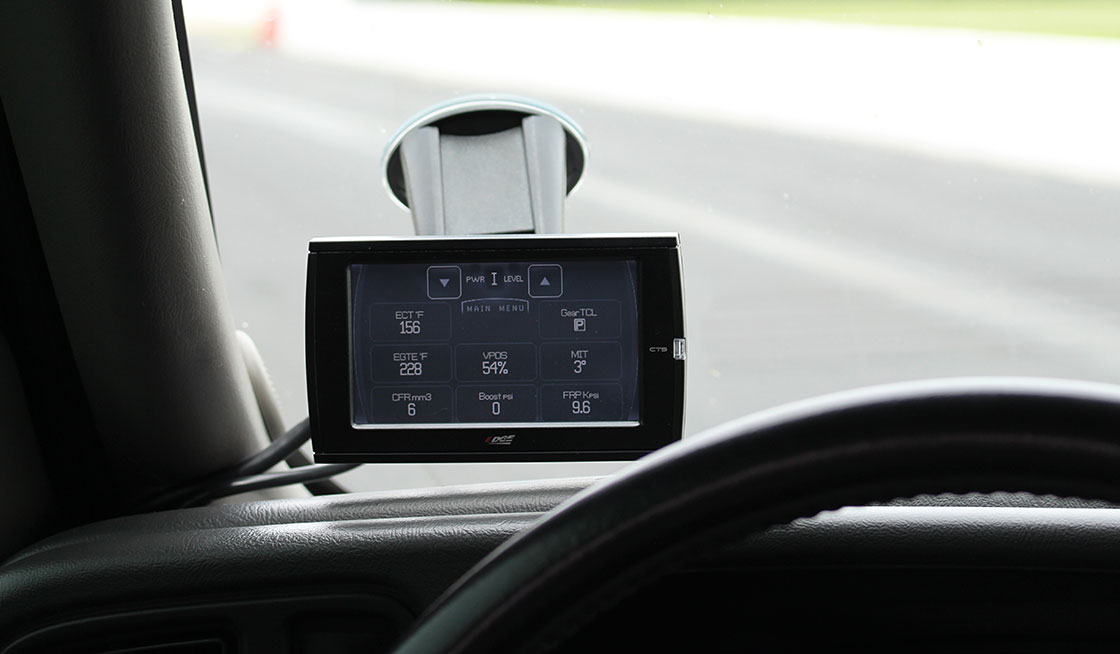

  • DuramaxTuner EFI Live via DSP5 switch


TRANSMISSION:

  • Duramax Tuner DT 1000 six-speed Allison with Goerend Transmission triple-disc (billet stator) converter
  • SunCoast GMax 6-Pac clutch kit, billet-steel input shaft, output shaft
  • C2 hub and P2 planetary
  • Goerend Transmission cast-aluminum PTO covers

HORSEPOWER:

  • 1,050 rwhp (dyno)

TIRES:

  • 305/50R20 Nitto Terra Grappler G2

WHEELS:

  • 20×10-inch Hostile Sprocket

AXLES:

  • 4.10 ring and pinion

STEERING/SUSPENSION:

  • Dmax Store Stage 3 Ultimate Front End Package with Kryptonite tie rods, solid center link, idler and pitman supports
  • Xtreme idler support frame gusset
